Fuel Gas Vertical Organic Heat Carrier Furnace Thermal Oil Boiler

최소 주문 수량 :	1	가격 :	협상 가능
포장 세부 사항 :	다양한 운송 방식에 따라 다양한 포장 방법이 채택됩니다.	배달 시간 :	30일
지불 조건 :	L/C,D/A,T/T,D/P

원래 장소:	중국	브랜드 이름:	Xinjie

상세 정보
증기 용량:	20000kg 보일러 20tonhr 20tph	방출 기준:	EU Ecodesign 또는 EPA 표준을 준수합니다.
제어 시스템:	원격 모니터링 기능이 있는 PLC	응용:	산업용 난방, 지역난방, 발전
화력:	2.8~2.9MW	재료:	스테인리스 또는 탄소 강철
설계 효율성:	80% 이상의 고효율	연료 저장:	통합 또는 외부 사일로
설계압력:	저압 0.4Mpa ~ 2.5Mpa	능률:	85% ~ 92%
강조하다:	Gas Thermal Oil Boiler , 20tph Fuel Thermal Oil Boiler , 2.9MW thermal boiler

제품 설명

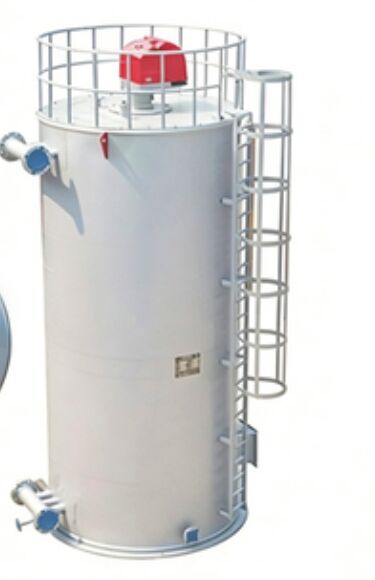

YL(W)S Type Fuel (Gas) Vertical Organic Heat Carrier Furnace

Product Overview

The YLS and YWS series of fuel (gas) vertical organic heat carrier furnaces are quick-installation forced circulation boilers featuring a compact heat exchange surface structure. The system utilizes closely arranged circular tubes organized in inner, middle, and outer configurations to maximize thermal efficiency.

Key Design Features

Compact heat exchange surface composed of closely arranged circular tubes
Inner tubes serve as radiant heat exchange surface
Middle and outer tubes form convective heat exchange surface
Positive pressure combustion with high radiation heat exchange efficiency
Reduced heat load on tube surfaces for safer heat transfer oil operation
Space-saving design minimizes boiler room footprint
Air preheater on larger models to improve overall efficiency
Simple installation - just place on foundation

Industrial Applications

This organic heat carrier thermal oil boiler is widely used in industries requiring continuous high-temperature heating. Ideal for chemical processing, textile dyeing and finishing, food production, pharmaceutical manufacturing, printing and packaging, and plastic processing. Suitable for drying, heating, curing, and distillation processes. Clean fuel compatibility makes it ideal for regions with strict environmental regulations.

Technical Specifications

Boiler Model	Rated Thermal Output (*10⁴ kcal/h)	Design Efficiency %	Working Pressure MPa	Max Working Temperature ℃	Medium Circulation Rate m³/h	Main Pipe Diameter DN	Installed Capacity kW	Internal Medium Volume m³	Fuel Consumption kg/h (kcal/h)	Overall Dimension Vertical (Φ*H) m	Overall Dimension Horizontal (Φ*L) m	Max Transport Weight t
YL(W)50.35-0.8/320/305-Y1Q(2)	30	≥92	0.8	320	40	80	14.5	0.4	32(38)	1.3*2.5	1.3*2.4	2.5
YL(W)50.47-0.8/320/306-Y1Q(2)	40	≥92	0.8	320	60	100	18	0.5	43(52)	1.8*3	1.8*3	3.5
YL(W)50.7-0.8/320/301-Y1Q(2)	60	≥92	0.8	320	60	100	18	0.6	64(77)	2*3.5	1.9*3.2	4
YL(W)50.96-0.8/320/306-Y1Q(2)	80	≥92	0.8	320	100	125	28	0.8	87(106)	2.1*3.8	2*3.3	5.2
YL(W)S1.2-0.8/320/301-Y1Q(2)	100	≥92	0.8	320	100	125	38	1.1	109(132)	2.2*4	2.2*3.6	5.5
YL(W)S1.4-0.8/320/295-Y1Q(2)	120	≥92	0.8	320	100	125	50	1.2	126(154)	2.2*4.5	2.2*4.2	7.3
YL(W)S1.9-0.8/320/301-Y1Q(2)	160	≥92	0.8	320	160	150	58	2.1	173(206)	2.4*4.6	2.4*4.6	8.6
YL(W)S2.3-0.8/320/297-Y1Q(2)	200	≥92	0.8	320	160	150	62	2.6	210(253)	2.7*5.1	2.5*5.3	13.6
YL(W)S2.9-0.8/320/297-Y1Q(2)	250	≥92	0.8	320	200	200	75	3.5	265(319)	2.9*6	2.8*6	15
YL(W)S3.5-0.8/320/292-Y1Q(2)	300	≥92	0.8	320	200	200	75	7.8	319(385)	3.1*6.3	3*6.2	20
YL(W)S4.7-0.8/320/296-Y1Q(2)	400	≥92	0.8	320	260	200	98	8.4	428(517)	3.2*7	3.2*6.7	29
YL(W)S5.9-0.8/320/286-Y1Q(2)	500	≥92	0.8	320	300	250	122	8.8	539(649)	3.3*7.5	3.3*7.4	37
YL(W)S7-0.8/320/286-Y1Q(2)	600	≥92	0.8	320	340	250	148	10.5	638(770)	3.5*6.2	3.3*7.9	47
YL(W)S8.2-0.8/320/287-Y1Q(2)	700	≥92	0.8	320	400	250	155	11.2	749(902)	3.6*9.2	3.6*9.2	53
YL(W)S9.4-0.8/320/291-Y1Q(2)	800	≥92	0.8	320	520	300	195	11.5	858(1035)	3.7*9.6	3.8*9.5	58
YL(W)S10.5-0.8/320/292-Y1Q(2)	900	≥92	0.8	320	600	300	235	13	956(1155)	3.65*11	3.65*10.4	65
YL(W)S12-0.8/320/286-Y1Q(2)	1000	≥92	0.8	320	600	300	235	15	1065(1320)	3.7*11	3.7*10.6	80
YL(W)S14-0.8/320/287-Y1Q(2)	1200	≥92	0.8	320	680	350	295	18	1278(1540)	4*11.8	4*11.5	108

Key Advantages

Energy Efficiency

Excellent energy efficiency through advanced heat exchange system and high-performance burner. Ensures stable, uniform heat transfer for improved production efficiency and reduced energy consumption.

Environmental Performance

Clean fuel compatibility significantly lowers emissions, making it an environmentally friendly choice for regions with strict environmental regulations.

Safety Features

Low-pressure operation reduces operational risks. Equipped with intelligent controls and multiple safety protection devices for reliable, safe operation.

Space Efficiency

Vertical design minimizes installation space and allows flexible layout in industrial plants. Compact structure with high-quality components ensures minimal downtime and continuous operation.

Global Market Presence

The YLS,YWS Type Organic Heat Carrier Thermal Oil Boiler is widely exported to Asia, Europe, Africa, and South America. With growing demand for clean and efficient heating solutions, this system has become a preferred choice for industries aiming to enhance energy efficiency and meet environmental standards worldwide.

The YL(W)S Type Fuel Gas Vertical Organic Heat Carrier Furnace is a reliable, efficient, and eco-friendly thermal oil boiler that meets the needs of modern industrial heating applications on a global scale.
